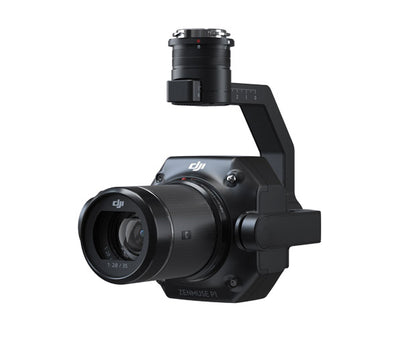

The DJI Zenmuse P1 is the official mapping payload designed by DJI for the M300 RTK drone. This camera features a full-frame 45 Megapixel CMOS sensor stabilized with the Zenmuse 3-axis gimbal. The mechanical global shutter makes it the ideal camera choice for photogrammetry mapping missions, allowing for fast image acquisition while reducing rolling shutter distortions.

TimeSync 2.0 technology synchronizes system data to the center of the image, with millisecond precision to increase overall accuracy. The DJI P1 is compatible with the DJI DL Lens set (24mm, 35mm, 50mm). Map up to 3km² per flight which is 5-10x more efficient than the Phantom 4 RTK.

COMPATIBILITY
DJI Matrice 300

FEATURES

45MP Full-frame Sensor
4.4μm Pixel Size
Low-noise, high sensitivity imaging extends daily operational time
Take a photo every 0.7 s during the flight
TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level
Global Mechanical Shutter
1/2000 Shutter Speed
24/35/50 mm Lenses - Lens are not interchangeable without factory calibration
Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed
Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.
Gather geographic information of large areas in real-time using DJI Terra so that teams can make crucial decisions quickly on site.

SPECS

General

Product Name	Zenmuse P1
Dimensions	198×166×129 mm
Weight	Approx. 800 g
Power	20W
IP Rating	IP4X
Supported Aircraft	Matrice 300 RTK
Operating Temperature Range	-20° to 50° C (-4° to 122° F)
Storage Temperature Range	-20° to 60° C (-4° to 140° F)
Absolute Accuracy	Horizontal: 3 cm, Vertical: 5 cm* *Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.

Camera

Sensor	Sensor size (Still): 35.9×24 mm (Full frame) Sensor size (Max video recording area): 34×19 mm Effective Pixels: 45MP Pixel size: 4.4 μm
Supported Lenses	DJI DL 24mm F2.8 LS ASPH(ENTERPRISE) (with lens hood and balancing ring/filter), FOV 84° DJI DL 35mm F2.8 LS ASPH(ENTERPRISE) (with lens hood and balancing ring/filter), FOV 63.5° DJI DL 50mm F2.8 LS ASPH(ENTERPRISE) (with lens hood and balancing ring/filter), FOV 46.8°
Supported SD Cards	SD: UHS-I rating or above; Max capacity: 512 GB
Storage Files	Photo / GNSS Raw Observation Data/ Image Log File
Photo Size	3:2 (8192×5460)
Operation Modes	Photo, Video, Playback
Minimum photo interval	0.7 s
Shutter Speed	Mechanical Shutter Speed: 1/2000-1 s Electronic Shutter Speed: 1/8000-1 s Aperture value no larger than f/5.6
Aperture Range	f/2.8-f/16
ISO Range	Photo: 100-25600 Video: 100-25600

Video

Video Format	MP4
Video Resolution	16:9 (1920×1080) 16:9 (3840×2160)* *Only 35mm lens supported
Frame Rate	60fps

Gimbal

Stabilized System	3-axis (tilt, roll, pan)
Angular Vibration Range	±0.01°
Mount	Detachable DJI SKYPORT
Mechanical Range	Tilt: -125° to +40° Roll: -55° to +55° Pan: ±320°

IN THE BOX

Zenmuse P1 Full-frame Sensor
