Chasing M2 PRO Submersible ROV

Regular price $4,999.00 Sale

per

Availability: Able to Source within the U.S.A. Unavailable

Product Type: Underwater ROV

Product Vendor: Chasing

Product SKU: CI-M2-PRO

  • Exchange or Return within 7 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping

The PRO version of the M2 is an upgraded, more powerful ROV. The 100 W motors were upgraded to 150 W to provide 50% more power. Enjoy all the best parts of the M2 standard model with enhanced new features for the PRO version. All M2 series components remain compatible while more add-on accessories are integrated, exclusive to this higher end model.


FEATURES
  • Submersible Speed: 4 Knots
  • Diving Depth: 490 feet
  • Max Horizontal Radius: 660 feet (200 meters)
  • Operating Temp: 50° to 113° F
  • Supports Battery and Direct AC Power
  • 5 hours Run-Time on Battery
  • Omni Directional Movement
  • Anti-Stuck Motors
  • Hotswappable Batteries
  • Removable SD Card, up to 512 GB supported
  • Accurate Depth and Temperature Real-Time Measurement
  • Add-On Module Attachment Capabilities
  • 4KUHD / 12 MP EIS Camera System
  • Two 2000 lumen LEDs
  • LiveBroadcast Streaming at 60 MB/s
  • HDMI Output, LiveBroadcast, Time lapse, Slow Motion and Quick Editing


CAMERA SYSTEM
The M2 ROV can record video in 4K / 30 fps and 1080p and capture photographic stills with a 12 MP camera, 1/2.3 SONY CMOS, ISO sensitivity 100-6400, f/1.8 fixed aperature, 152° FOV. Two 2000 lumen LED combined with EIS anti video-shake features, help to improve the camera performance in low light and dynamic range.

OMNI DIRECTIONAL MOVEMENT
8 Vectored-Thrusters enable the ROV to move in all directions.

ADD-ON ATTACHMENT MODULES

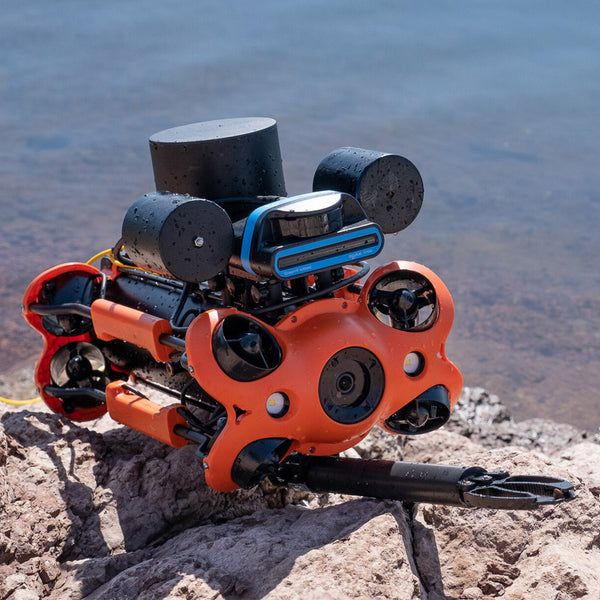

The PRO version of the M2 ROV supports the current M2 compatible components: Robot Claw, GoPro camera, external LED lights, and Laser scaler. It additionally supports with more enhanced accessories such as: the Control Console (High-brightness Screen), Docking Station, USBL Underwater Positioning, Multibeam Sonar, Auxiliary Camera and more.

Control Console is a more robust and higher brightness control interface. The USBL Underwater Positioning add-on, enables accurate tracking of the ROV when underwater. The Multibeam sonar generates a wide range of high-quality images through acoustic reflection to enable fast search and target positioning, no longer affected by muddy water. While the auxillary camera gives you another vantage point while you are exploring.


UNLIMITED POWER

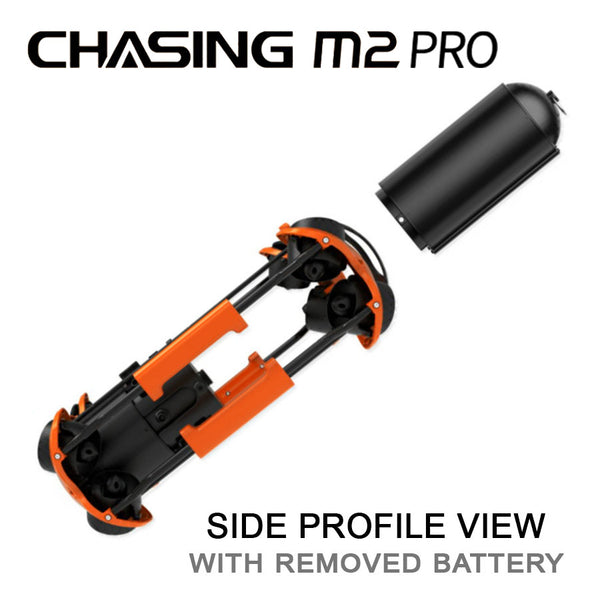

CHASING M2 PRO works with both AC and battery power supply. The default 300Wh high-capacity lithium battery is replaceable.The optional 700Wh lithium battery can work up to 5 hours, and the optional external AC equipment can truly achieve unlimited battery life.

* ELECTRIC E-REEL SYSTEM (Optional)
E-Reel system is easy to use. It can retract the tether within 3-9 minutes, and can be used more than 30 times on a single charge. Constructed out of stainless steel and aluminum parts with explosion-proof wire ensures this system will be ready when you need it. Supports up to 200 meters length tether. Get rid of the trouble of manual winding and spend more time exploring underwater instead!

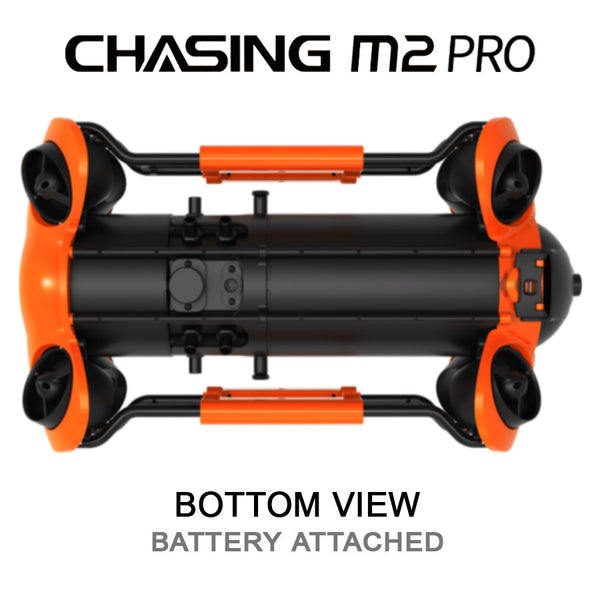

Drone

18.9" x 10.5" x 6.4" (480 x 267 x 165 mm)
≈5.7 kg
490 ft (150 m)
4 Knots (2 m/s)
Up to 4 hours
300 Wh
-10℃~45℃

Control Console

19" x 14.8" x 7" (484 x 375 x 178 mm)
8 kg
1920 x 1080, 1000 cd/m2
-10 ℃ ~ 45 ℃
21.6 V
RJ45 x 2, USB 2.0 x 2, QC3.0 USB x1, AC Input x 1,
AC output to ROV x 1

Camera

1/2.3 inch
F1.8
1m
100-6400
152°
12 Meg pixel
JPEG/DNG
UHD: 3840*2160 (4K) 30fps
FHD: 1920*1080 (1080p) 30/60/120fps
720p: 8x (240 fps)
1080p: 4x (120 fps)
4K / 1080p supported
60 M
MP4
128 G

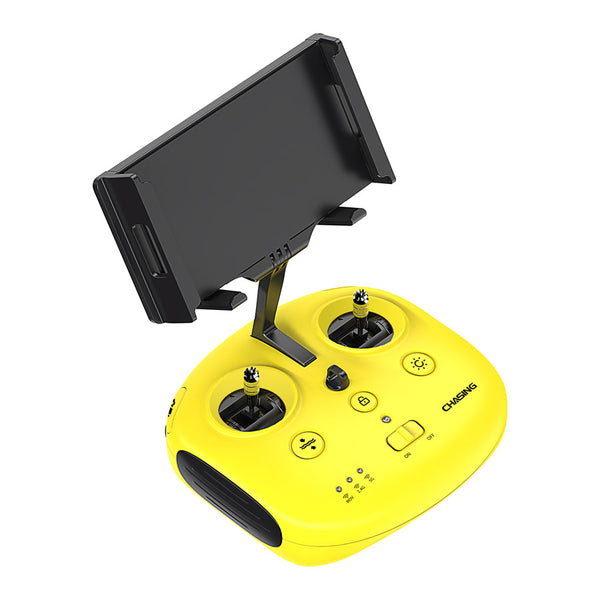

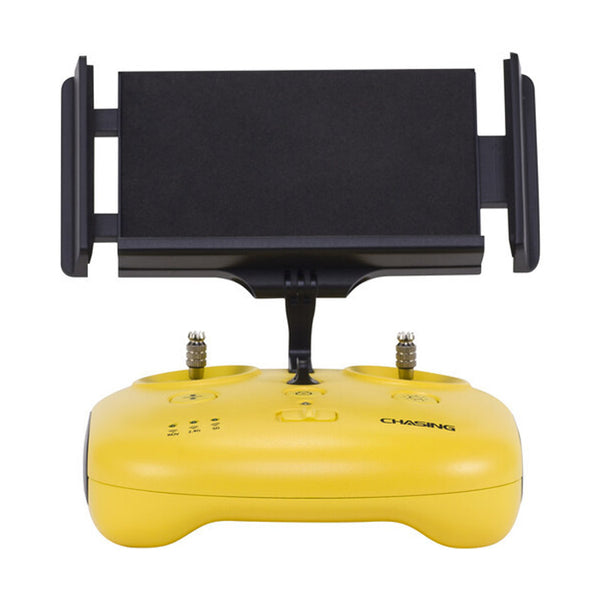

Remote Controller

6.3" x 6.1" x 4.9" (160 x 155 x 125 mm)
685 g
2500 mAh
≥ 6 hours (depending on the environment)
Wi-Fi supported
Support
Maximum support 10 inch

Sensor

3 axis gyro & accelerometer & compass
< ± 0.25 m
< ± 2 ℃

Charger

2.9A / 25.2V
4.5 H
2 H

LED

2 x 2000 Lumens
5000 K - 5500 K
85
Three gears



E-REEL SYSTEM

296 x 189 x 279 mm
3.5 kg
200 meters
4800 mAh
Number of Cycles > 300 times
Runtime 30 times
Winding Speed 3 gears
Take-Up Speed (200m) Fast speed 220s / Low speed 9min
Operating Temp -10℃~45℃
Charger Power 25.2V 1.5A / 2.9A
Charger Time 4H


Chasing M2 ROV, 100 meter Tether Cable, Remote Controller, Buoy/Winder, 75W/12.6 VDC Charger for ROV, 38W/12.6 VDC Charger for Buoy, Limited 1-Year Warranty



(OPTIONAL) E-REEL SYSTEM
INCLUDES: e-Reel, Handle, Charger, 300 meter tether

 
