Parrot Anafi UKR Public Safety Drone^Sale

Regular price $16,910.00

Vendor: Parrot

Type: Drones

Sku: PF728445

Available: Able To Source

SUMMARY
SPECS

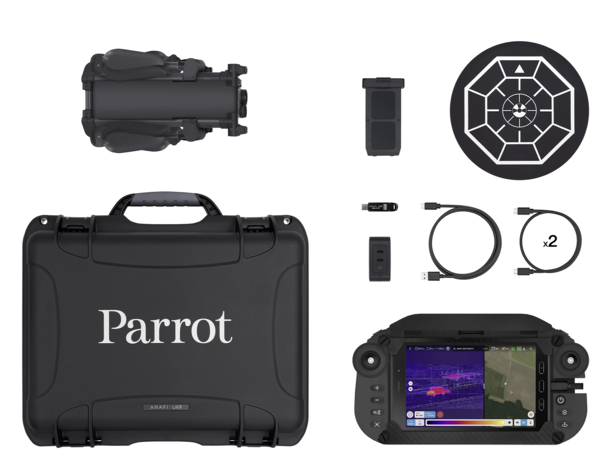

IN THE BOX

SUMMARY

Parrot Anafi UKR Public Safety Drone - Gov edition.

The Parrot ANAFI UKR is a compact, tactical drone designed for defense and public safety missions, particularly in situations where GPS may be unavailable or compromised. It features advanced ISR capabilities, rugged design, and a focus on cybersecurity.

It meets the requirements of the U.S. National Defense Authorization Act, specifically regarding supply chain security and cybersecurity, meaning it's NDAA compliant.

Download flier

Key Features:

NDAA Compliant
Sensor: FLIR BOSON – Resolution: 640 x 512 px
Satellite navigation: GPS, GLONASS, Galileo & BeiDou
Sound power level at 1 m (3 ft): 77 dBA
Service ceiling: 5,000 m above MSL (Mean Sea Level)
Zero data shared without user consent
Flight Planning with waypoints and points of interest

Key Capabilities:
- Compact and Deployable: The ANAFI UKR is designed for easy deployment in various environments, including urban and rural areas.
- Advanced ISR Capabilities: It excels in Intelligence, Surveillance, and Reconnaissance (ISR) operations, providing real-time situational awareness.
- GPS-Denied Operations: The drone can operate effectively even when GPS signals are unreliable or unavailable, using alternative navigation methods.
- Rugged and Durable: Built to withstand challenging conditions, including harsh weather and potential electronic warfare.
-Dual-Sensor Camera: Features a 35x zoom daylight camera and a thermal imager, enabling both day and night reconnaissance.
- Cybersecurity Focus: Data encryption, secure communication protocols, and offline data storage options are implemented to protect sensitive information.
- Open-Source SDK: Allows for customization and integration with various software and tools for specialized workflows.

SPECS

Aircraft

Metric Units
- Folded: 245 mm × 160 mm × 116 mm
- Unfolded: 350 mm × 665 mm × 116 mm
Imperial Units
- Folded: 9.65 in × 6.30 in × 4.57 in
- Unfolded: 13.78 in × 26.18 in × 4.57 in
Weight: 959 g
MTOM: 1,450 g
Max Airspeed: 17 m/s
Max Groundspeed: 12.6 m/s
Max Ascent/Descent Speed: 8 m/s
Wind Resistance: 15 m/s
Propeller Speed: 8,500 rpm
Sound Level: 77 dBA
Service Ceiling: 5,000 m MSL
Operating Temp: -36 °C to +50 °C
IP Rating: IP53
Deployment Time: < 2 min
Max Transmission Range:
- 5G: Unlimited
- Wi-Fi: 5 km
- MARS Radio: 15 km
- LoRa: 20 km

Sensors

GNSS: GPS, GLONASS, Galileo, BeiDou
IMUs: 4 x 6-axis
Cameras: Front/Vertical stereo, vertical range sensor
Barometer, Magnetometer

Cybersecurity

AES-XTS: 512-bit SD card encryption
AES 256: radio/data encryption
Private or anonymous data sharing

EO Image Chain

Sensors: 1/2.4"
Zoom: 35x digital
Video: 4K/FHD/HD (MP4 H.264/H.265)
Photo: 21 MP wide, 16 MP rectilinear (JPEG, DNG)

IR Image Chain

Sensor: FLIR BOSON 640 x 512
Temp Range: -40 °C to +250 °C
Sensitivity: ≤60 mK
Video: UHD 2160p @ 8.6 fps
Photo: JPEG

Stabilization

Gimbal: 3-axis hybrid (mechanical + EIS)
Tilt Range: -90° to +90°

Smart Battery

Type: LiPo 6,800 mAh / 11.55 V
Charge Time: 2.5 h
Autonomy: 38 min
Range: 20 km

XLR Smart Battery

Type: Li-ion 20,200 mAh / 11.55 V
Charge Time: 3 h
Autonomy: 60 min
Range: 40 km

Ground Control Station - Parrot SkyController UKR

• Size folded: 171 x 302 x 77 mm (6.7 x 11.9 x 3.0”)
• Size unfolded: 171 x 302 x 215 mm (6.7 x 11.9 x 8.5”)
• Mass: 1,764 g (3.89 lb)
• Battery capacity: 10,000 mAh
• Battery voltage (nominal): 7.2 V
• Battery charging duration: 2 h (2 h 30 min with tablet)
• Autonomy: 4 h 30 min
• Ports: USB-C (tablet), USB-C (charging), USB-A (pairing + accessory interface), Ethernet (Remote Antenna feature), HDMI
• IP53: rain and dust resistant
• Skycontroller UKR is supplied with a Samsung tablet, but is also compatible with an iPad Mini
• The system is also available without a tablet

Advanced flight app - FreeFlight 8

• Flight Planning with waypoints and points of interest
• Object recognition & tracking
• Cursor On Target
• Video streaming & recording
• EO and IR cameras settings management
• Touch & Fly
• System settings and management
• Flight logs recording and reviewing

*Version Dependent
**By special request
